1-1/2" Pneumatic Double Diaphragm Pump

DS14

Specification

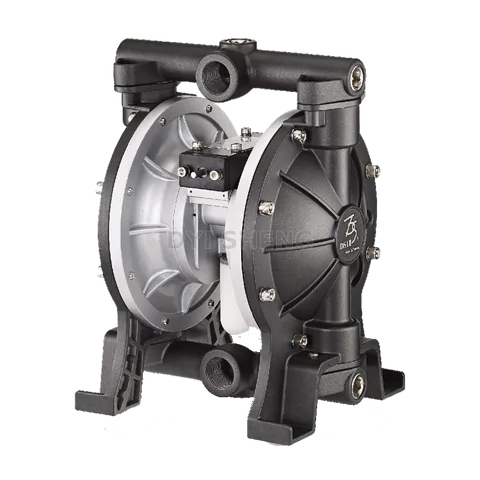

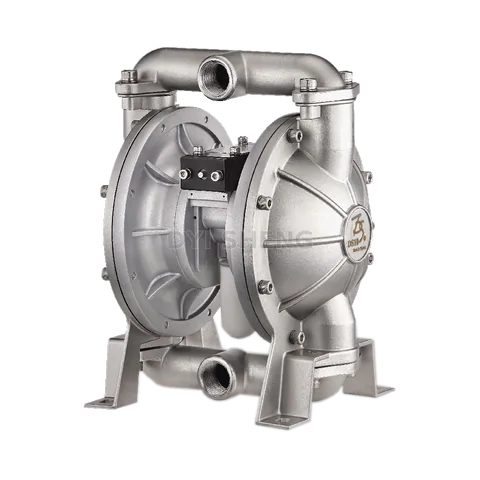

Aluminum Alloy & Stainless Steel

DiaphragmMaterialTemperature Range
UPE(U)+5 to 50 ℃
TFM(T)-30 to 130℃
Santoprene(O)0 to 80℃
Suction/ Discharge Port Size
1-1/2" PT(BSP)
Air Inlet Port Size
1/2" PT(BSP)
Air Exhaust Port Size
1" PT(BSP)
Min Air Inlet Pressure
1.2Bar ; 17.4psi
Max Air Inlet Pressure
8.0Bar ; 116psi
Best Air Inlet Pressure Range

1.5~3.5 Bar(kgf/cm²) ; 21.75psi~50.76psi

Discharge Volume Per Cycle

edition01-2850 ml/cycle

edition02-2250 ml/cycle

Max Solids Handling
Φ 4.5mm
Max Air consumption

2300Liter/Per Min.;81.22 Scfm/Per Min

Max Wet Suction Lift
6.7m
Packing Dimensions

38Lx29Wx50H(cm), 1.95Cuft

Max flow rate

81.89 Gallon/Per Min. ; 310 Liter/Per Min.

Liquids Serviceability

【Aluminum Alloy】

Suitable for neutralized liquids such as neutralized wastewater, sludge, coating paints, paints, inks, methanol, mud, and low viscosity resins. It can also be used to transfer organic solvents, petroleum, and gasoline using plastic diaphragms. This type can be used in sludge dehydrators and frame filter machines. Their work efficiency and lifespan are superior to other types of pumps.

【Stainless Steel】

Suitable for almost all alkaline liquids and most acidic liquids, but does not contain dilute sulfuric acid, hydrochloric acid, hydrobromic acid, aqua regia, or chlorine. It can also be used to transfer ethanol, food, sauces, and syrups, but it should be cleaned regularly. This type can be applied to industrial silt, plated wastewater, and cosmetics in the chemical engineering industry.

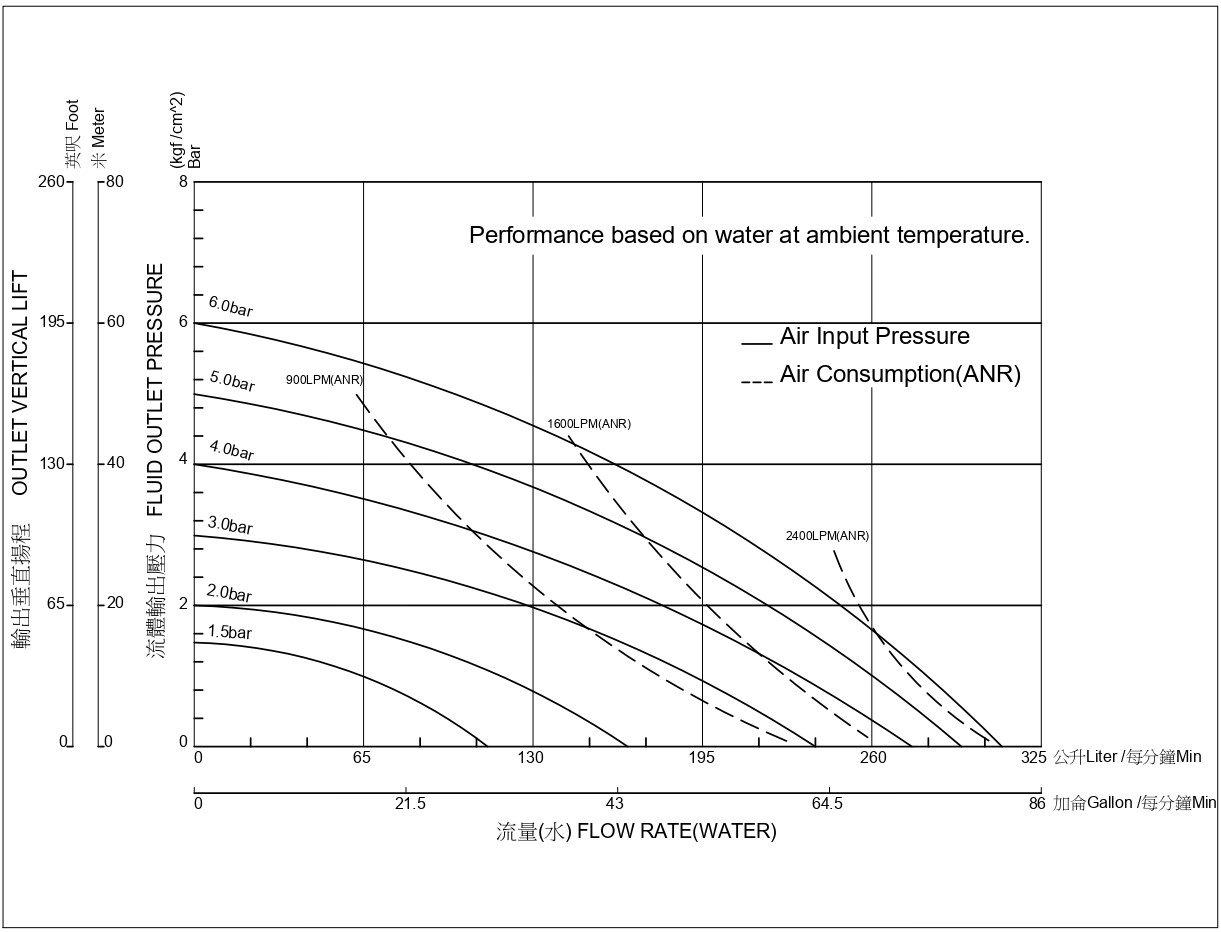

Diagram of Curve
